说明
额定温度：90ºC
额定电压：0.6/1kV
标准：AS/NZS 5000.1
导体：符合AS/NZS1125标准1类，2类或5类铜丝
绝缘：符合AS/NZS 3808标准
满足AS/NZS 5000.1阻燃要求
环保要求：RoHS & REACH
应用

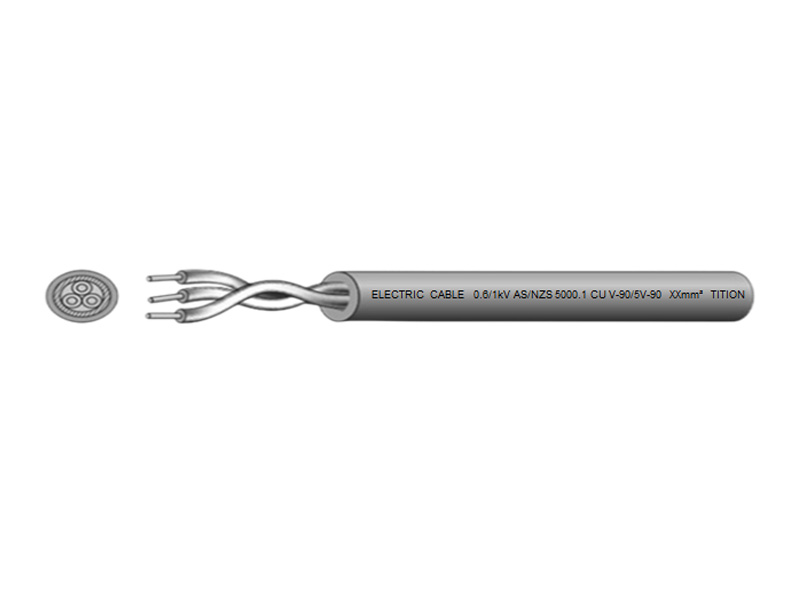

0.6/1(1.2)kV单芯或多芯聚合物绝缘护套电线电缆
产品参数
| Conductor | Insulation | Maximun Resistance at 20℃ | ||||
| 导体 | 护套 | |||||
| AWG | Core.Number | Nom.Thick. | Average | 20℃最大导体电阻Ω/km | ||
| 线规 | 电缆芯数 | 平均厚度 | 参考外径 | |||
| mm | mm | |||||
| 2.50 | 2× | 1.27 | 10.50 | 7.98 | ||
| 3× | 1.29 | 11.20 | ||||
| 4× | 1.32 | 12.30 | ||||
| 4.00 | 2× | 1.34 | 12.70 | 4.95 | ||
| 3× | 1.36 | 13.50 | ||||
| 4× | 1.41 | 14.80 | ||||
| 6.00 | 2× | 1.38 | 14.00 | 3.30 | ||
| 3× | 1.41 | 14.90 | ||||
| 4× | 1.46 | 16.40 | ||||
| 10.00 | 2× | 1.50 | 16.00 | 1.91 | ||
| 3× | 1.48 | 17.20 | ||||
| 4× | 1.54 | 19.00 | ||||
